| ID : | PL-190108134706 |
| Brand : | Niagara |
| Model : | HD 230-10-12 |
| Year Of Manufacture : | 1989 |
| Description : | Niagara Hydraulic Press Brake Model : HD 230-10-12 Year : 1985 Control CybTouch 8 |
| Request Quote | |

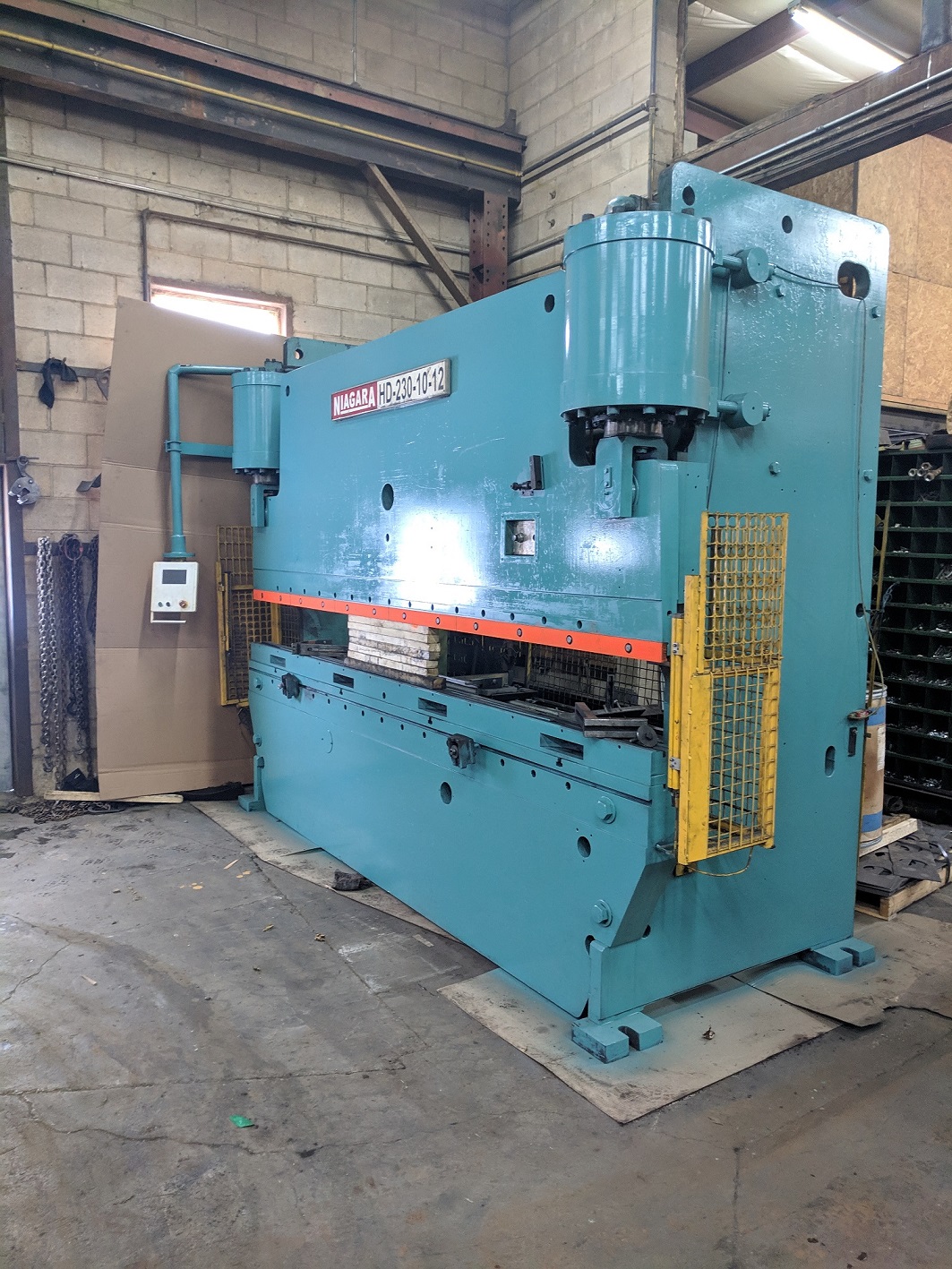

Niagara Hydraulic Press Brake
Model : HD 230-10-12
Year : 1989

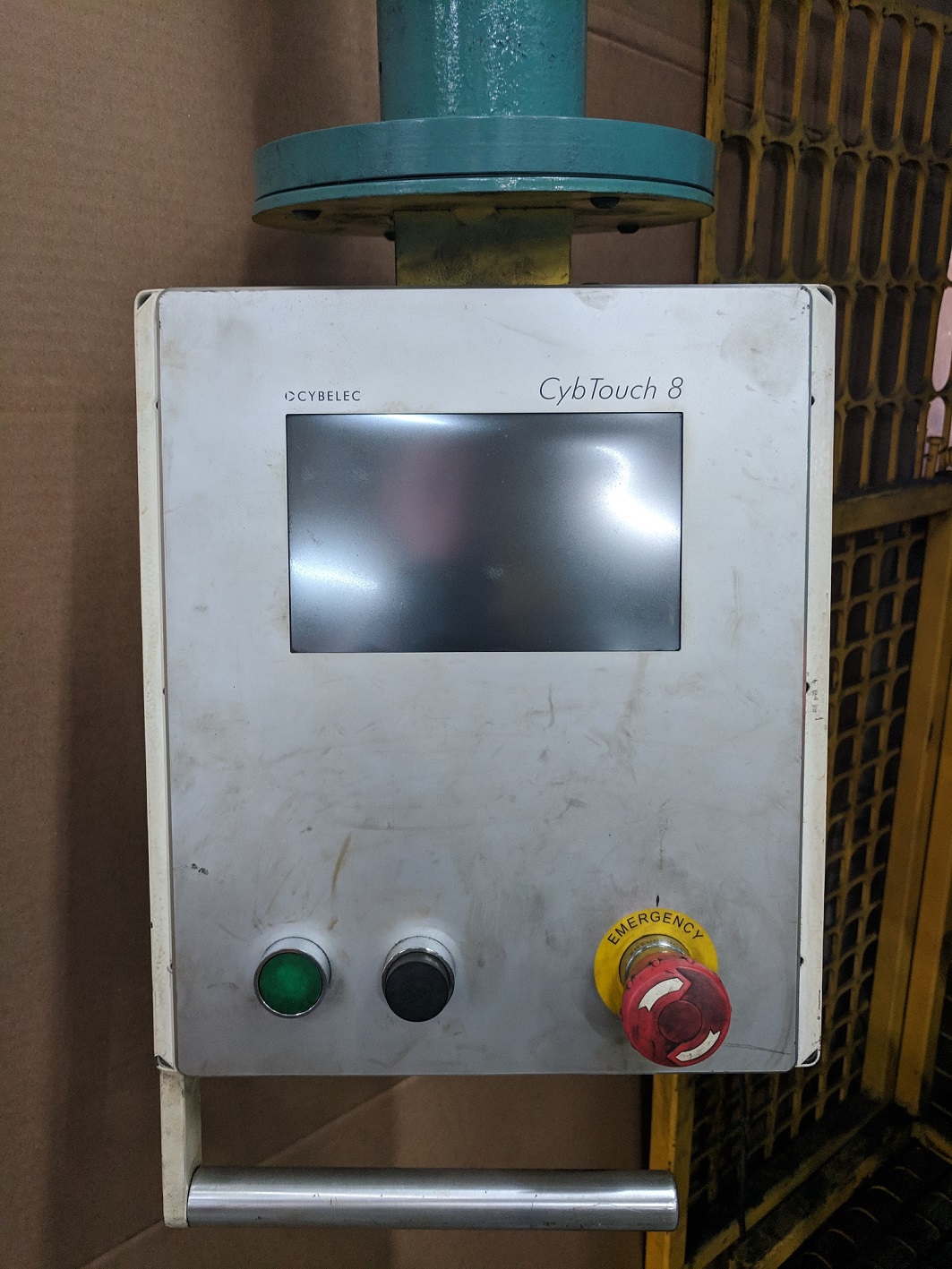

Control CybTouch 8
Technical Specifications (Subject to Verification)
Capacity 230 Ton
Overall Bending Length 12 ft.
Between Housing Length 10 ft. 6 in.
Throat Depth 8”
Adj. Stroke 12”
Max Open Height 17”
Closed Height 5”
Motor 30 HP
Approx. Dimensions 154″ x 70″ x 112″ (l x w x h)
Approx. Weight 29,500 lbs
Equipped with

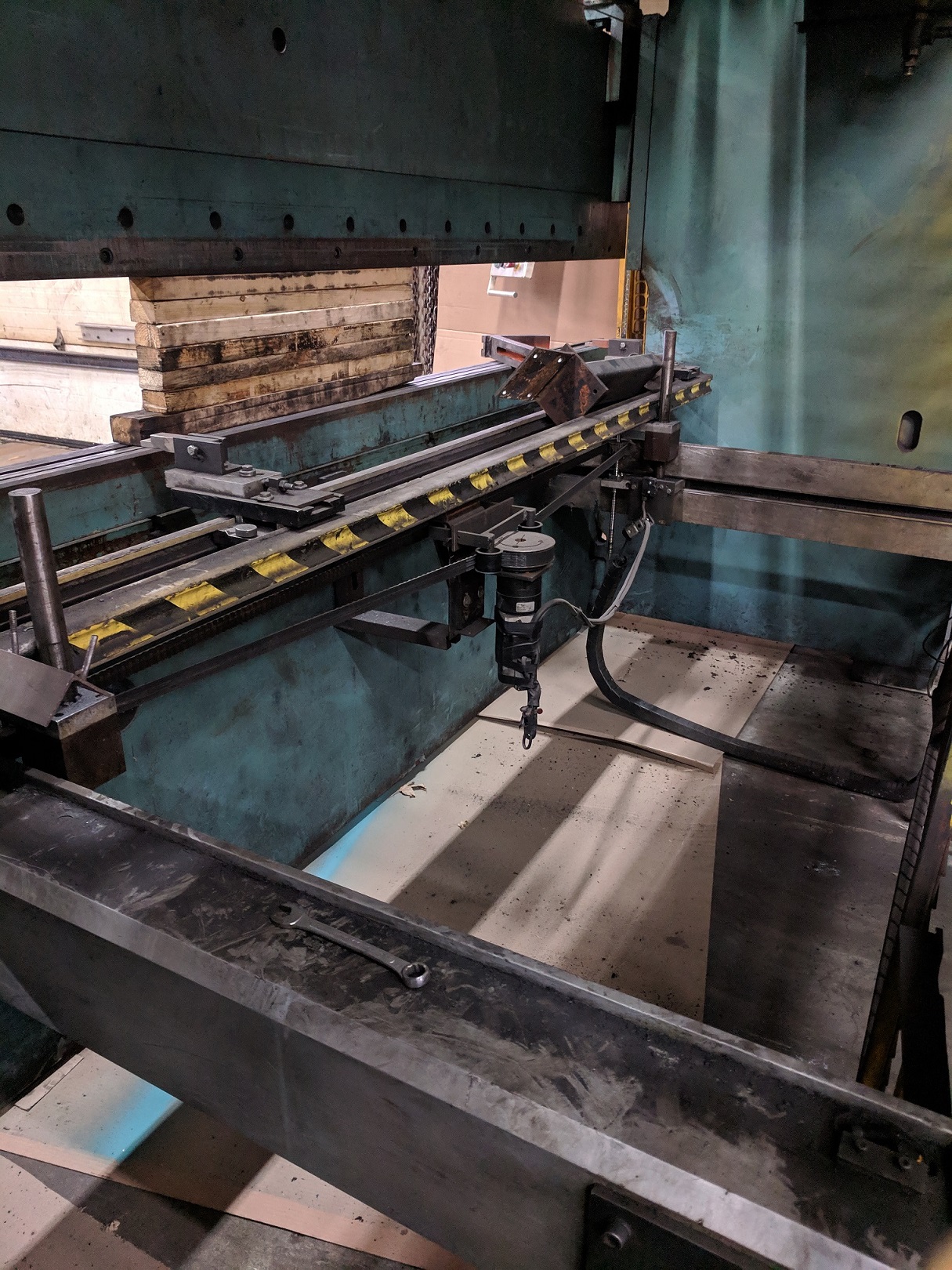

CybTouch8 controls Back Gauge, Bend Angles, Ram Up & down
