Giana Heavy Duty Engine Lathe View full category

Sold Out
ID : PL-170605150614
Brand : Giana
Model : GFP-12
Year Of Manufacture : 1980
Description : Giana Heavy Duty Engine Lathe Model GFP-12 Year 1980’s



Specifications
31.50 inch
118.11 inch
4.72 inch
47.24 inch
Description

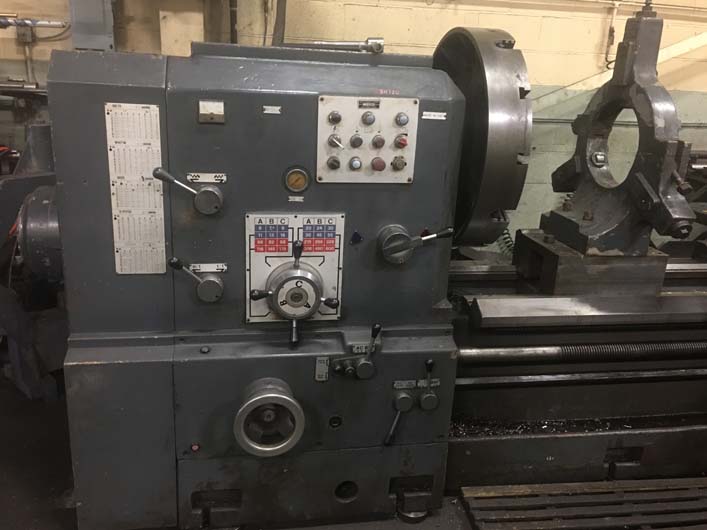

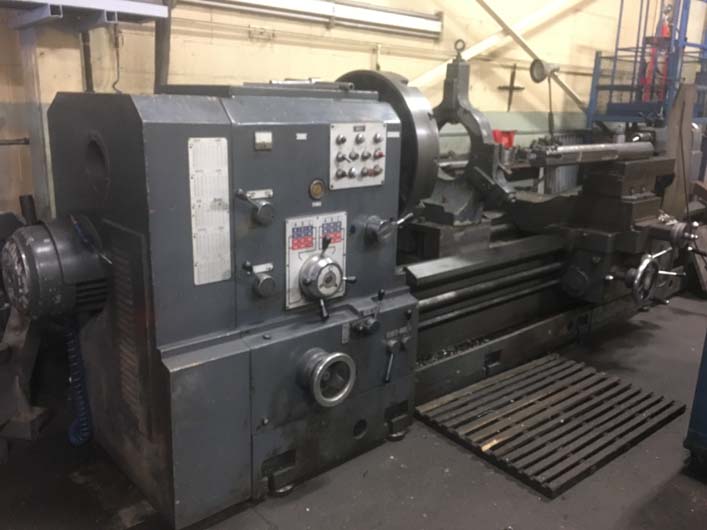

Giana Heavy Duty Engine Lathe, Made in Italy

Model GFP-12

Year 1980’s

Location Toronto, ON

Machine is under power

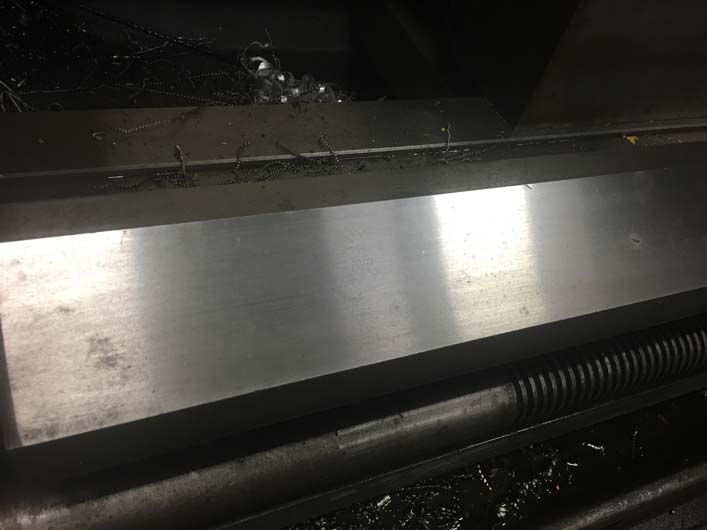

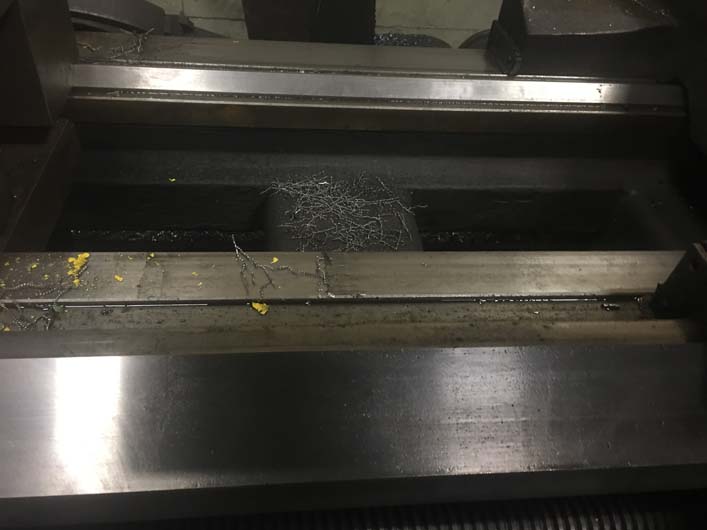

Condition: Excellent, Guide ways are great!





Technical Specifications (Subject to Verification)

Swing over Bed               Ø 1200 mm

Swing over carriage        Ø 800 mm

No Gap

Distance between center 3000 mm

Spindle bore                    Ø 120 mm

Spindle Speeds               6-600

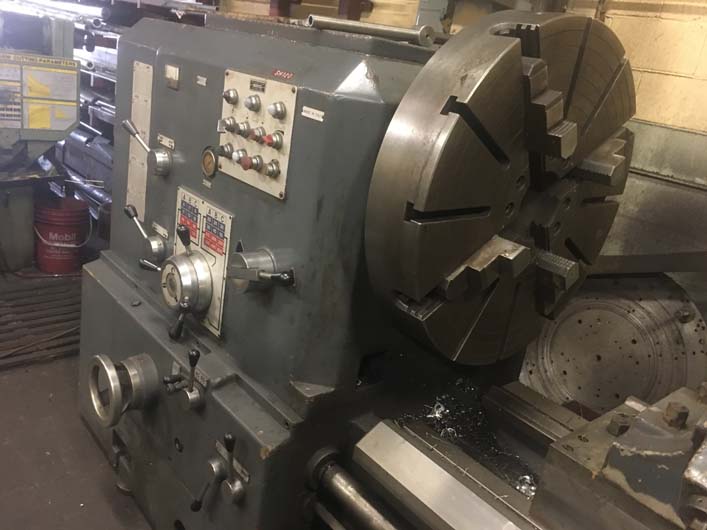

4-Jaw Chuck                    800 mm

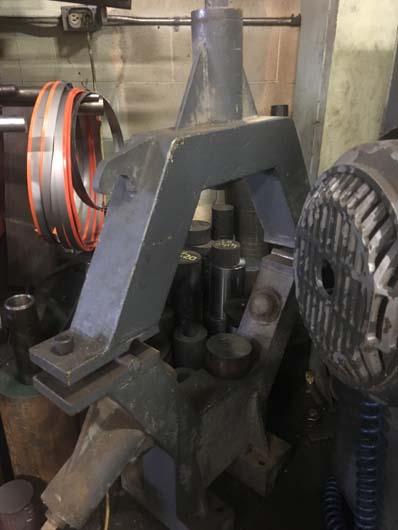

Steady rest                      Ø 6.5" to 12"

Steady Rest                     Ø 16"

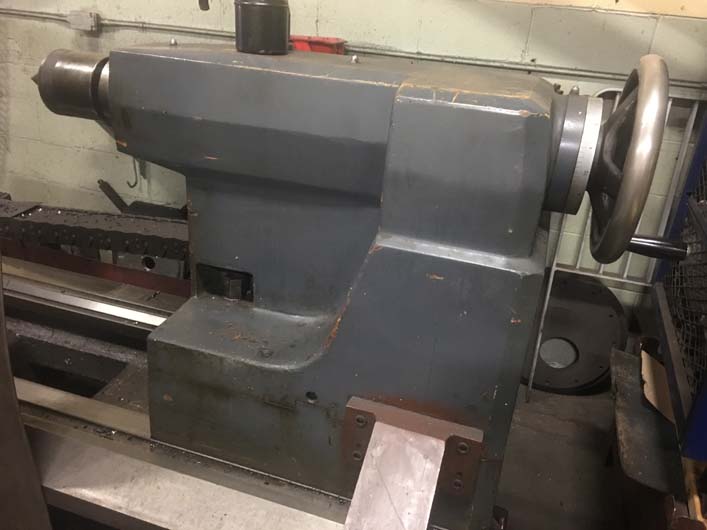

Tail Stock quill dia

Quill Taper                       MT-6



Equipped with

  • Chip Tray and coolant
  • Rapids on Saddle
  • Graduation in mm
  • Quick Change Tool Holders (5)



Electrics 575V, 3 Phase, 60 Hz



Weight of the machine  11 Tons (Approx.)
